Flexible PCBs (Part III) – Design Tips for Effective PCB Manufacturing and to Improve Product Quality

Know Your Application and Frequency of Usage

Before you design a flexible PCB, it is very important that you know what kind of bending flexibility is expected from the PCB in the application and during usage – Dynamic Bend, Semi-Dynamic Bend or Stable Bend. Following is a guide to help you decide this -

Criteria	Dynamic Bend	Semi-Dynamic Bend	Stable Bend
Frequency of Bending	Regular	Moderate	Once or Few Times (e.g. during installation)
No. of Layers	1 Layer (min) 2 Layer (max)	1 Layer (min) 4 Layer (max)	1 Layer (min) 10 Layer (max)
Mask Layer	PI Coverlay	PI Coverlay or Solder Resist	PI Coverlay or Solder Resist
Min. Bending Radius	100-150 times flex PCB thickness	More than 20 times flex PCB thickness	10-20 times flex PCB thickness

Conductor Routing – Design Tips

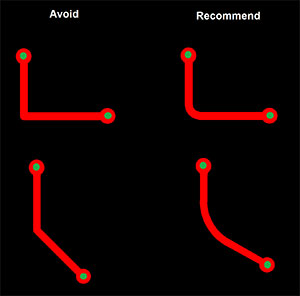

Avoid Right Angle & Hard Corners

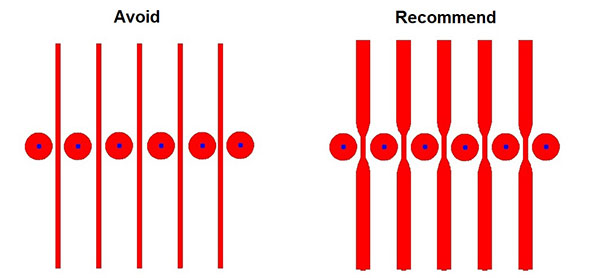

Maximise Line Widths

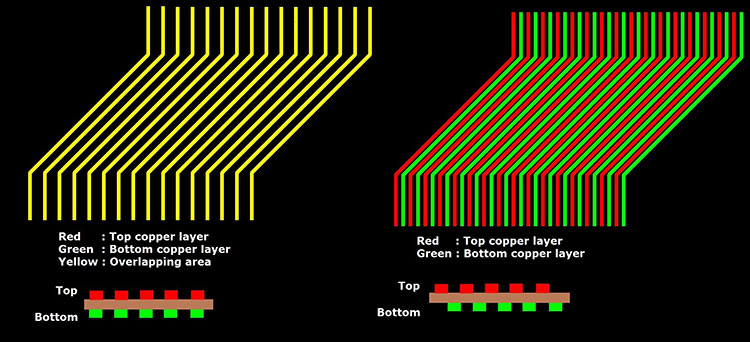

Avoid I-Beam Design

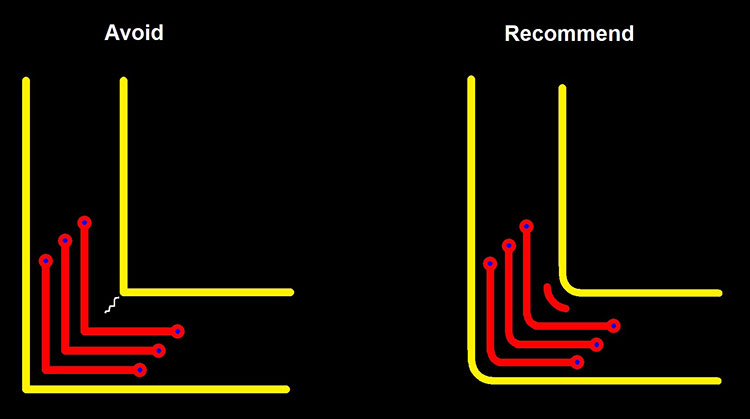

Add Tear Stops

Ground Planes – Design Tips

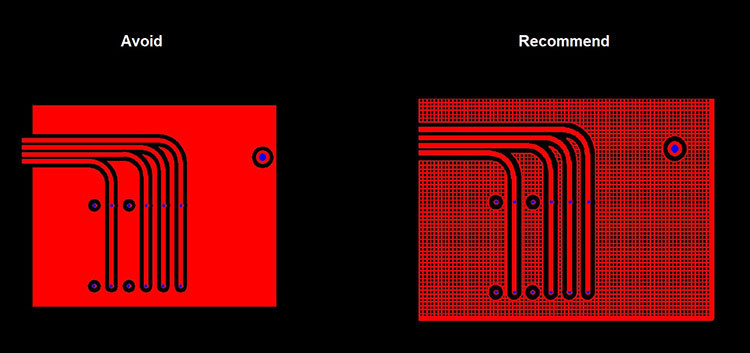

Convert Continuous Solid Copper into Hatched Pattern

Pads, Vias & Coverlay – Design Tips

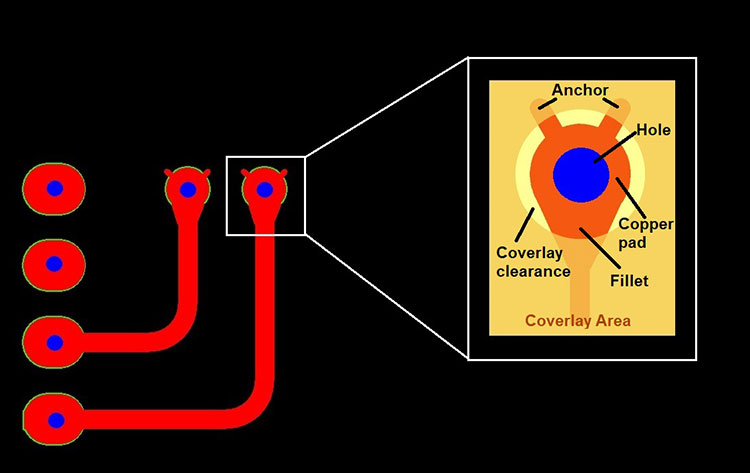

Anchor Spurs & Add Fillets

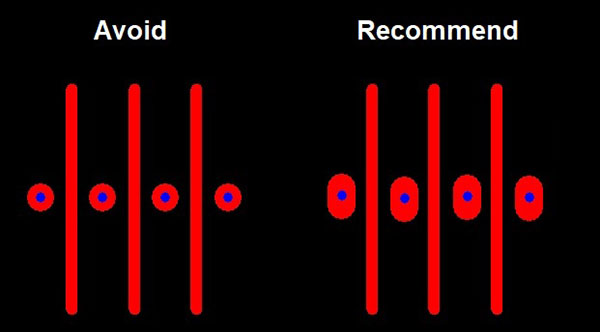

Design Elongated Pads Instead of Traditional Round Pads

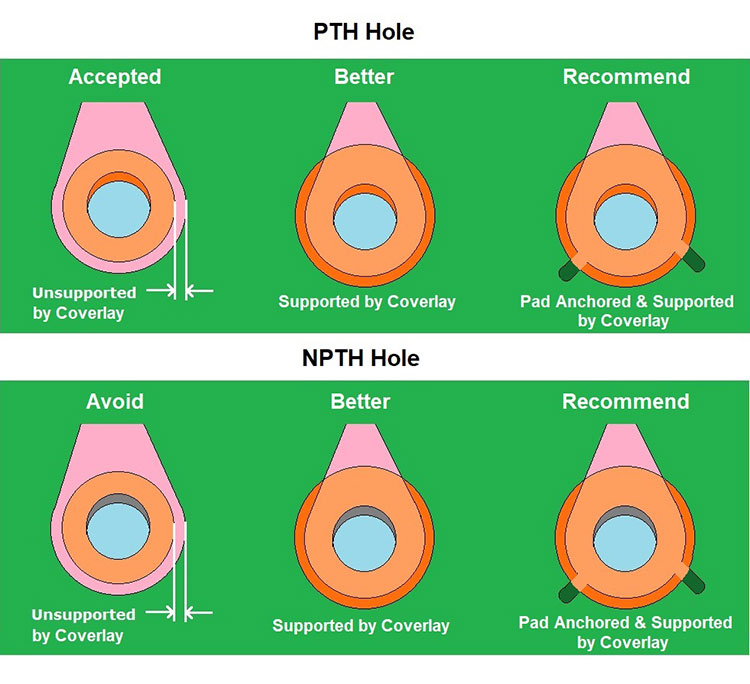

Add Coverlay Support to PTH & NPTH holes

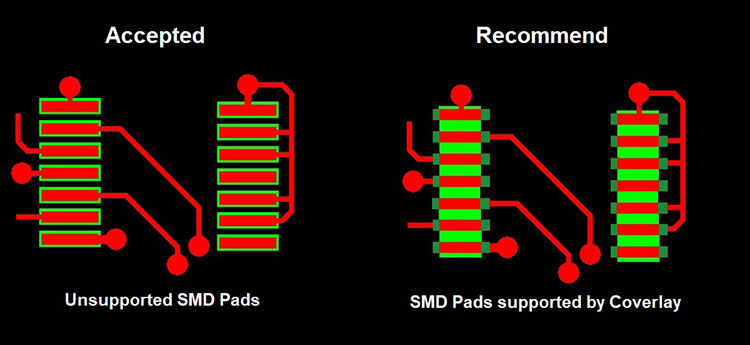

Add Coverlay Support to SMD Pad

Bending Area – Design Tips

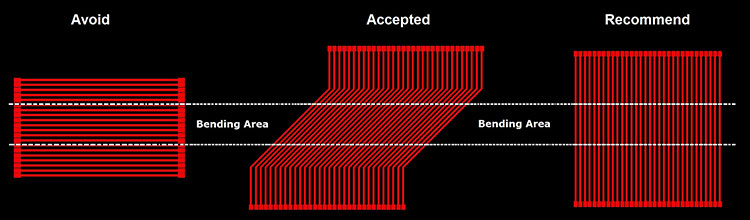

Rout Conductor Traces Perpendicular to Bending Axis

Bending Area – Design Tips

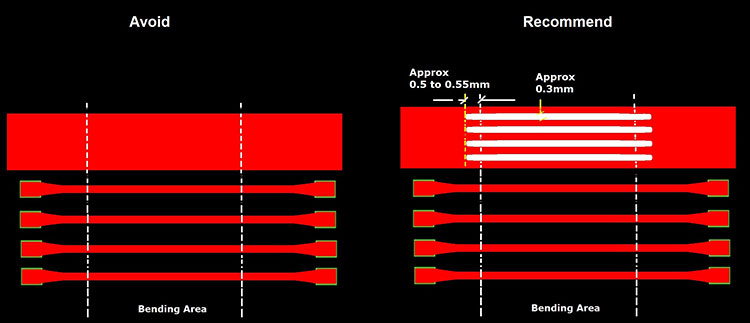

Divide Wide Traces Into Few Narrower Ones

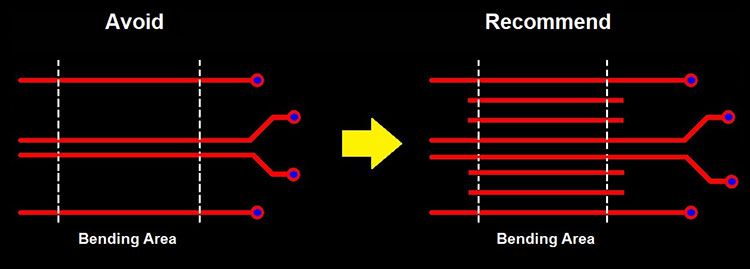

Fill Open Regions with Fake Traces

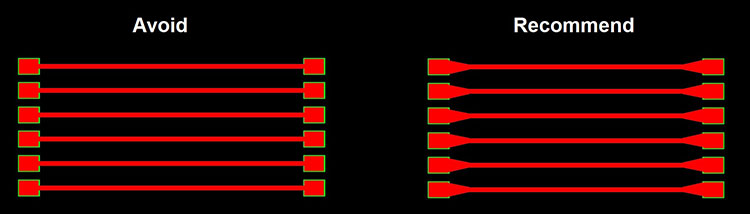

Do Not Change Conductor Width Abruptly

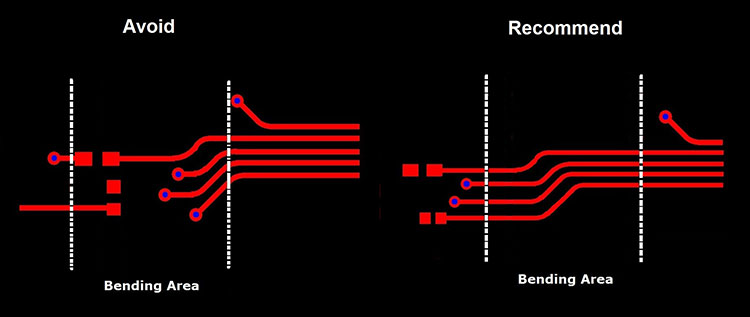

Avoid Vias & Component Pads

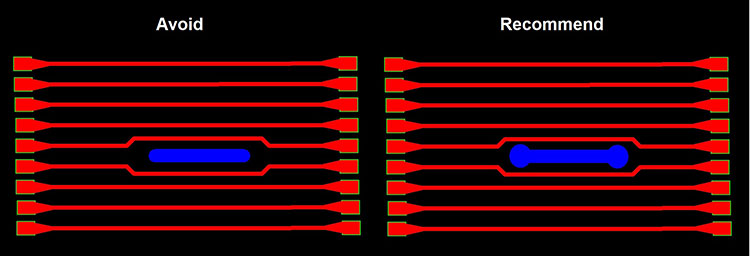

Slots & Cut Out – Design Tips
